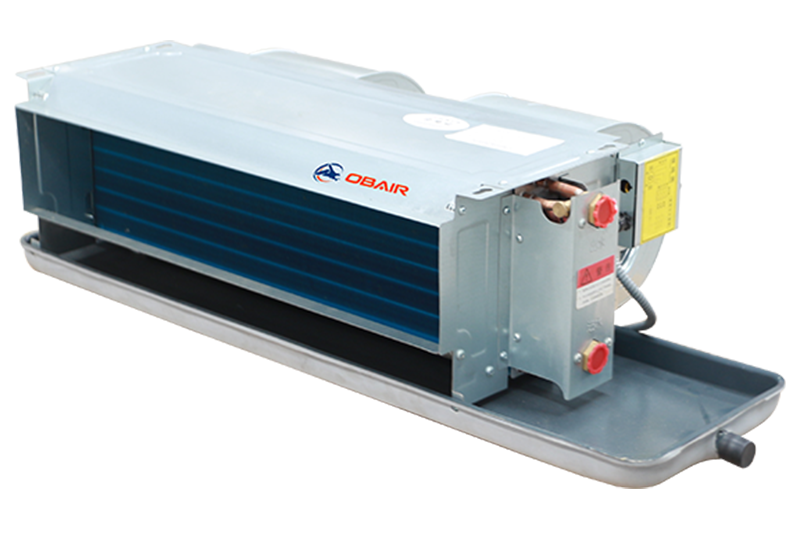

Fan Coil Unit
OBAIR Fan Coil Units are air conditioning terminal equipment suitable for installation in hotels, residences, office buildings, villas, radio stations, airports, subways, and other horizontal concealed spaces. The fan coil units integrate the advantages of similar products at home and abroad, featuring advanced design, a complete range of specifications, superior performance, and quality assurance. These products retain the consistent excellent design of the OBAIR brand.
Model: FP
Air volume: 340m3/h~2380m3/h
Cooling capacity: 2440W~14370W
Wide Metal Impeller
Multiple Reinforcement Ribs
Open Window Hydrophilic Aluminum Foil
Integral Drain Pan
Technical Parameter
Wide Metal Impeller
Wide metal impeller and metal casing with multi-blade double-suction centrifugal fan. It has low speed and low noise. The fan has undergone strict dynamic and static balance tests before leaving the factory to ensure stable operation.
Multiple Reinforcement Rib
The body has multiple reinforcement ribs processed to enhance the strength of the sheet metal, preventing deformation during transportation and vibration during operation.
Open Window Hydrophilic Aluminum Foil
Equipped with a heat exchanger that uses 9.52mm copper tubes and is finned with hydrophilic aluminum foil with a louvered opening. It has low water resistance, smooth condensate drainage, corrosion resistance, and high efficiency.
Integral Drain Pan
The drainage pan is formed by a one-piece stamping process, double-sided spray-coated. The exterior surface is covered by B2 class flame-retardant insulation material for overall insulation, with no insulation joints to prevent condensation.
Distributor Protective Cover
The heat exchanger's water flow distributor protective cover ensures that the copper tubes are not damaged during the construction process.
Flanging Technique
The end plates of the heat exchanger have been processed with a flanging technique, which can protect the copper tubes from being cut or damaged.
