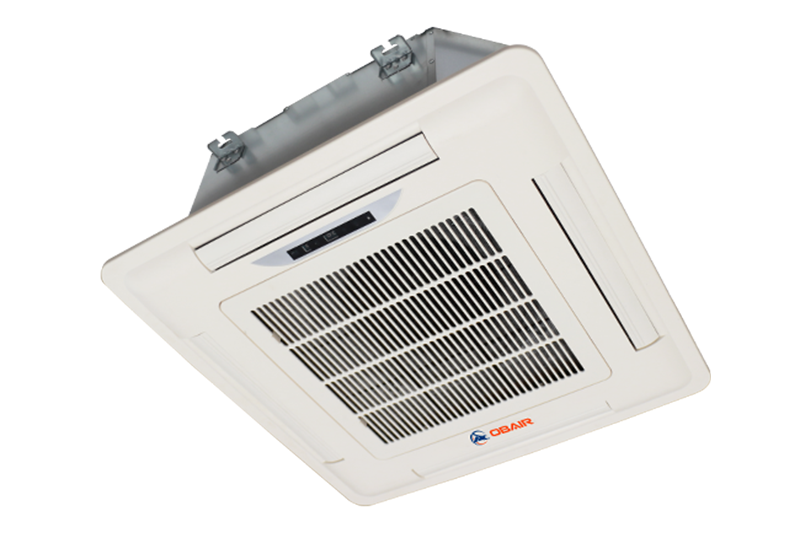

Cassette Fan Coil Unit
OBAIR Cassette Fan Coil Units are air conditioning terminal equipment suitable for installation in hotels, residences, office buildings, villas, radio stations, airports, subways, and other horizontal concealed spaces. The fan coil units integrate the advantages of similar products at home and abroad, featuring advanced design, a complete range of specifications, superior performance, and quality assurance. These products retain the consistent excellent design of the OBAIR brand and have the following features:
Model: FP-KQ
Air volume: 340m3/h~2380m3/h
Cooling capacity: 2160W~13610W
Pure Copper Motor
Honeycomb-Style Filter
Encapsulating Surface Heat Exchanger
Condensate Drain Pipe
Technical Parameter
Pure Copper Motor
High-torque pure copper wound motor with enhanced power and rapid heat dissipation.
Honeycomb-Style Filter
Removable And Washable For Better Health.
Encapsulating Surface Heat Exchanger
Pure Phosphor Bronze Tubes, Hydrophilic Fins.
Condensate Drain Pipe
ABS material condensate pipe, rust-free and resistant to aging, sturdy and durable, can be equipped with a lifting pump for forced condensate discharge.
3D Helical Rotor
Powerful airflow with low noise operation.
Reinforced Galvanized Sheet Shell
Laser-cut material, stamping molding, meticulous craftsmanship, durable and long-lasting.
Product Features
It has variable load characteristics, strong adaptability, and can be flexibly equipped with automatic control systems such as electric valves and thermostats.
Product Features
Complete range of models, with 9 types available to suit different venues. Airflow ranges from 340m³/h to 2380m³/h, and cooling capacity ranges from 2440W to 14370W. Both standard and high-static-pressure models are available for each type.
Product Features
The nominal airflow, static pressure, noise level, and performance of the unit all exceed national standard values.
Product Features
Aesthetically pleasing appearance, exquisite structure, and durable. Made of galvanized steel plate structure, equipped with front-bent blade centrifugal double-suction silent metal fans, PSC motors, and oil-free bearings. The fans have undergone strict dynamic and static pressure balance adjustments, ensuring smooth operation, low noise, energy savings, and long life, with normal operation possible for over 10 years, and convenient maintenance.
Product Features
The coil is made of high-quality seamless copper tubes and aluminum fins, manufactured through strict processes such as mechanical expansion and secondary flanging. It features double-sided high-efficiency tube-fin type heat exchanger coils with slit fin design, all products have undergone strict leak tests at 2.4MPa pressure, ensuring quality.
Product Features
The coil can be easily disassembled for cleaning and maintenance. The water inlet and outlet connections of the coil can be easily changed from left to right. The unit's condensate pan is of an extended type, ensuring that condensate from the connected cold water pipes and uninsulated electric valves can smoothly fall into the pan, preventing condensate leakage from the pipes.
Product Features
The standard 2-pipe system uses a 3-row coil, and the 4-pipe system uses a 4-row coil (3 rows for cooling and 1 row for heating), which can be flexibly configured according to user requirements.
Product Features
The FP series also offers an optional return air box design.
