Rotary Dehumidifier Section Series Unit

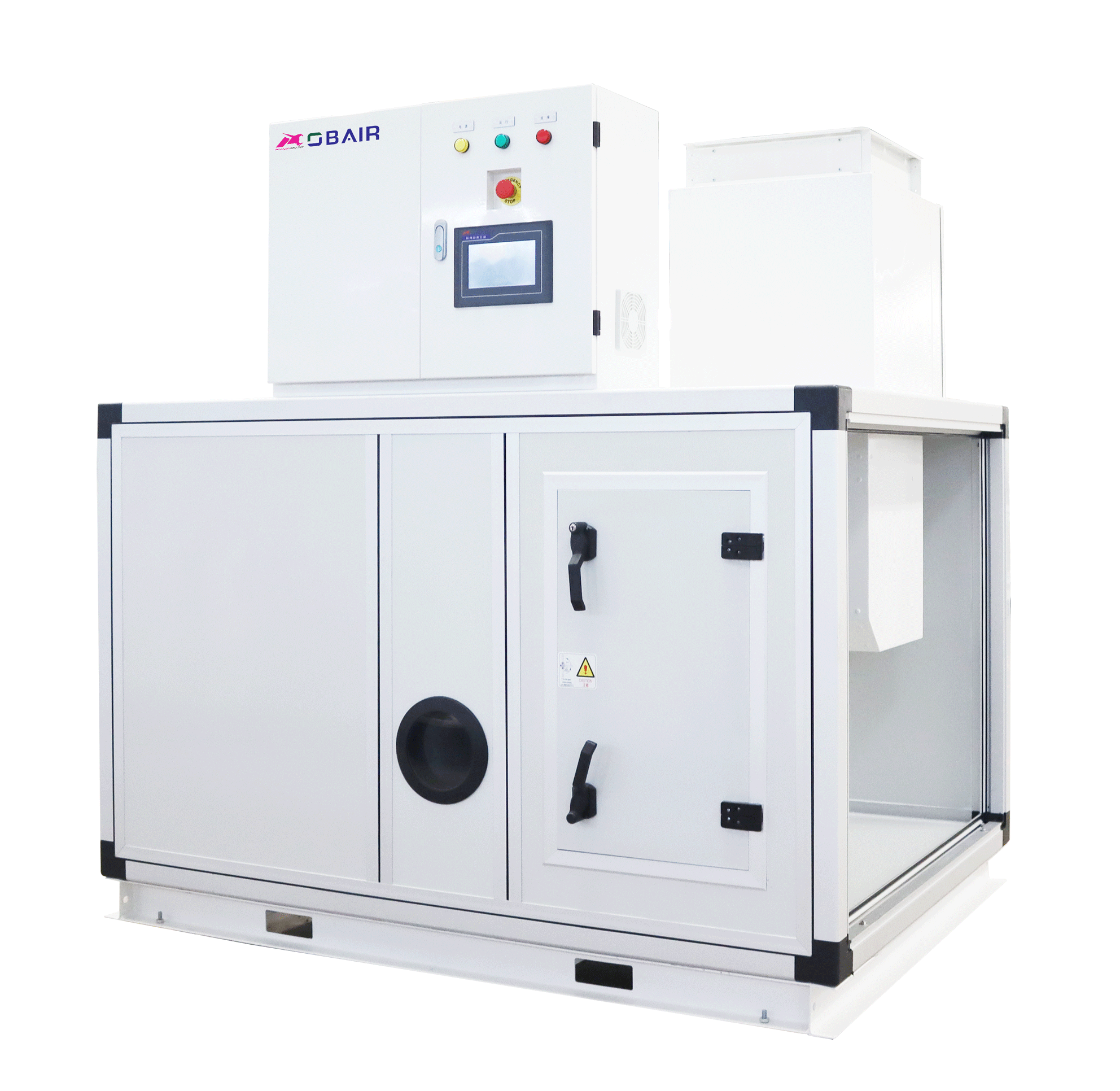

The OBAIR rotary dehumidification section refers to the standard module containing a dehumidifying wheel, which is one of the core functional sections in the combined rotary dehumidifier and is independently developed and designed by Oubo technology. This standard module comes in various models and covers a wide range of air processing capacities, from 1000 to 50,000 CMH. When paired with Qubo's combined air conditioning units or direct expansion air handling units, it can reduce the relative humidity of air to below 30% RH while ensuring the control requirements for indoor cleanliness, temperature and humidity, and air velocity.
The equipment is composed of main components such as the dehumidifying wheel, reactivation heater, air filter, reactivation fan, and sealing system.
Model: ZLD
Treated air volume: 1000m3/h~5000m3/h
Rated dehumidification: 7.6kW/h~37kW/h
Cold Source Selection
Heat Source Options
Functional Section Customization
Integrated Mechanical-Electrical Design
Technical Parameter
Cold Source Selection
The form of the cold source can be selected as chilled water or direct expansion based on the user's site conditions
Heat Source Options
The form of the heat source can be chosen as electric heating, steam heating, or other forms based on the user's site conditions
Functional Section Customization
Different functional sections can be selected to meet the needs of various application scenarios
Integrated Mechanical-Electrical Design
The design integrates mechanical and electrical systems, with high integration of the entire electrical control, reducing the amount of work required for on-site installation
Precise Humidity Control
Energy-saving, combined, low dew point, and ultra-low dew point types can meet the precise temperature and humidity control requirements of various low humidity areas for users
